An arc flash is the light and heat produced as part of an arc fault (sometimes referred to as an electrical flashover), a type of electrical explosion or discharge that results from a connection through air to ground or another voltage phase in an electrical system.
An Arc Flash Study, also known as an Arc Flash Hazard Analysis, is a crucial assessment used to evaluate the risk of arc flash incidents in electrical systems. Here’s a detailed breakdown of what’s involved in an Arc Flash Study:
Key Components:
Data Collection:
- System Layout: Gather detailed information about the electrical system, including one-line diagrams.
- Equipment Details: Collect data on equipment ratings, settings, and configurations.
- Operating Procedures: Document operating procedures and maintenance practices.
System Analysis:
- Short-Circuit Analysis: Calculate available fault currents at various points in the system.
- Protective Device Coordination: Analyze the coordination of protective devices to ensure they function correctly during faults.
- Arc Flash Calculations: Determine the incident energy levels (measured in cal/cm²) using methods like IEEE 1584 or the NFPA 70E tables.
Hazard Assessment:
- Incident Energy Levels: Evaluate the incident energy levels at different locations and distances from the arc.
- Arc Flash Boundaries: Calculate the arc flash boundaries to establish safe working distances.
- PPE Requirements: Determine the appropriate Personal Protective Equipment (PPE) based on the calculated incident energy levels.
Reporting and Labeling:

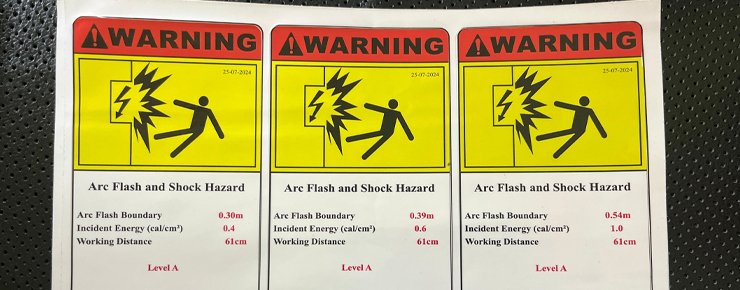

- Arc Flash Labels: Create and place labels on equipment indicating the incident energy levels, arc flash boundaries, and required PPE.
- Study Report: Compile a comprehensive report detailing the findings, recommendations, and corrective actions.
Recommendations:
- Mitigation Strategies: Suggest modifications to reduce incident energy levels, such as upgrading protective devices or changing settings.
- Training: Recommend training for personnel on arc flash hazards and proper safety procedures.
